Folder Gluer YJC-900F

YAOJIA folder gluer can process straight line boxes, crash lock bottom boxes, double wall boxes and 4/6 corner boxes solid board up to 800 gsm and micro-fluted box flute E and flute F

Inquiry

Product Application

YAOJIA folder gluer can process straight line boxes, crash lock bottom boxes, double wall boxes and 4/6 corner boxes solid board up to 800 gsm and micro-fluted box flute E and flute F.

Machine Video


Technical

Model

Pace-Setter YJC-900F

Paper Material

Paperboard 200-800g/m², E and F flute corrugated paper

Min size(W×L)

86×60mm

Max size(W×L)

950×900mm

Max Speed

400m/min

Feeding Way

Automatically and continuously feeding, Servo motor controlled

Way Of Folding In Reverse

  First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º

Glue Type

Water base glue

Power Supply

3P 380V 50HZ

Main Motor Power

15KW

Total Power

28KW

Weight

7t

Overall Dimension

16×1.55×1.85m


Machine Details



Feeder

Fully Automatic Feeder With Servo Motor 5kw

8 pcs 30mm Friction Belts Soft Rubber Compound (optional extra 4 vacuum belts)

4 Back Carton Supports

3 Front paper supports (Quick adjustment for thickness of substrate)

2 Paper Side Guides

Vibrator

Video screen monitor (view final product at the end of the Machine)



Aliening unit

2 Bottom Transport Carriages (fitted with 34mm wide Belts)

1 left Hand Side Squaring Guide

1 Right Hand Side Squaring Guide

4 Top paper support guides

Adjustable top Carriages fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank

Electronic movements of carriages in and out of working position (Via remote control)



Pre Fold Unit

1st and 3rd Crease Pre Folding up to 180 and 135 degrees helping to break the fiber of rigged board

Bottom left had side carriage 43 millimeter wide belt

3 Bottom Carriages

3 Top carriages

Electronic movements of carriages in and out of working position (Via remote control)


Crash bottom lock unit

3 Bottom Transport carriages

3 Top Transport carriages

4 Sets of crash lock hooks

3 Sets of diagonal folding shoes 2 Unit per Set

Electronic movements of carriages in and out of working position (Via remote control)






4 And 6 Corner Device

2 Servo Drive Motors 2kw Each

3 Folding Hooks 4 Corners

3 Folding Hooks 6 Corners

6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks)




Final Folding Unit

Folding 2 and 4 crease

Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc

Adjustable speed control of belts left and right

Movement of carriages electronic (via remote control)





Trombone unit

Double Trombone (Telescopic)

Moveable Touch screen Commander Module

Batch counter Pneumatic kicker for batch count quantity

Pressing Roller Device

Movement of carriages electronic (via remote control)




Pressing unit

1 Drive Motor (Standard 3.7 KW)

Electronic Movement of Press Motorized (Front and Backward position)

Pneumatic pressing (Adjustable via Pneumatic Regulator valves)

Pneumatic Front Stops (Squaring Device)


Machine Pictures

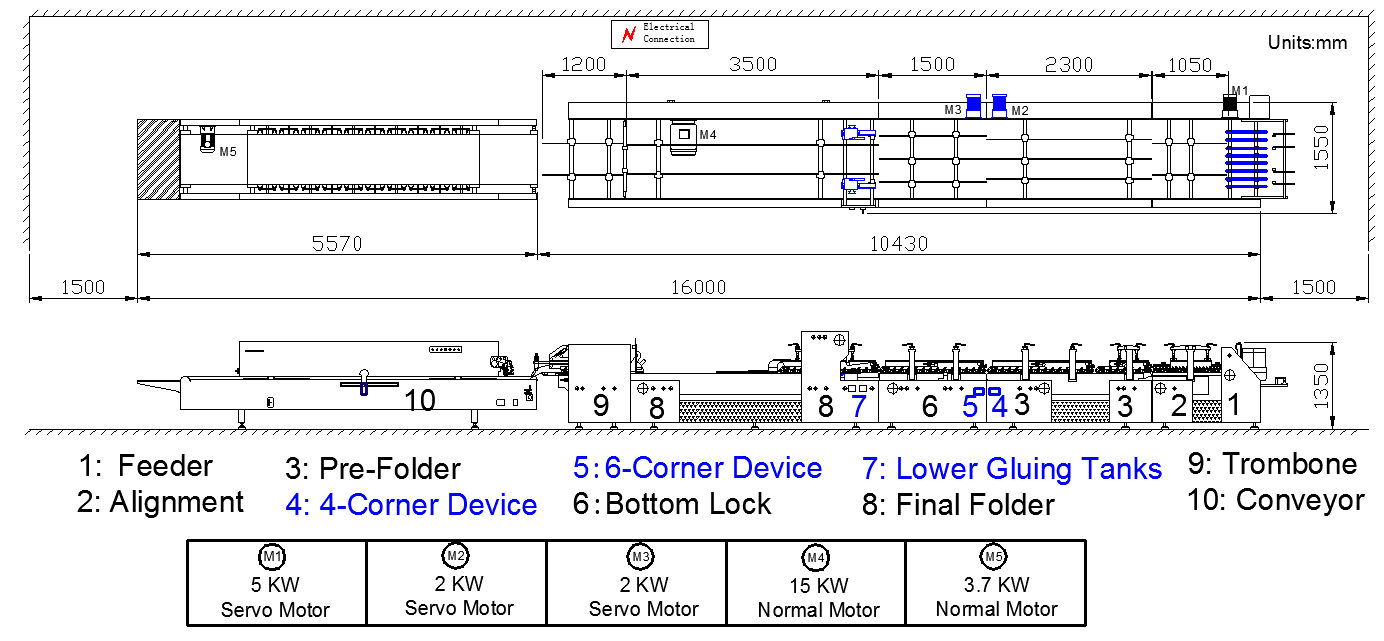

         Floor Plan
