Folder Gluer YJS-900FL

YJS-900FL, It is new design,4/6 Corner Gluer with Speed Wave Module, Hookless folding speed wave.
YAOJIA folder gluer machine can process straight line boxes, crash lock bottom boxes, double wall boxes and 4/6 corner boxes solid board up to 800 gsm and micro-fluted box flute E and flute F

Inquiry

Product Application


YJS-900FL, It is new design,4/6 Corner Gluer with Speed Wave Module, Hookless folding speed wave.

YAOJIA folder gluer machine can process straight line boxes, crash lock bottom boxes, double wall boxes and 4/6 corner boxes solid board up to 800 gsm and micro-fluted box flute E and flute F

Machine Video


Technical

Model

Leader YJS-900FL

Paper Material

Paperboard 200-800g/m², E and F flute corrugated paper

Min size(W×L)

76×60mm

Max size(W×L)

950×800mm

Max Speed

400m/min

Feeding Way

Automatically and continuously feeding, Servo motor controlled

Way Of Folding In Reverse

  First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º

Glue Type

Water base glue

Power Supply

3P 380V 50HZ

Total Power

42KW

Weight

8.5t

Overall Dimension

17.7×1.55×1.85m


Machine Details




Feeder

Fully Automatic Feeder With Servo Motor 5kw

8 pcs 30mm Friction Belts Soft Rubber Compound (optional extra 4 vacuum belts)

4 Back Carton Supports

3 Front paper supports (Quick adjustment for thickness of substrate)

2 Paper Side Guides

Vibrator

Full Colour Video Monitor (Supervise view final product at the end of the Machine)


Aliening unit

2 Bottom Transport Carriages (fitted with 34mm wide Belts)

1 left Hand Side Squaring Guide

1 Right Hand Side Squaring Guide

4 Top paper support guides

Adjustable top Carriages fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank

Electronic movements of carriages in and out of working position (Via remote control)





Pre Fold Unit

1st and 3rd crease

Bottom left had side carriage 43 millimeter wide belt

3 Bottom Carriages

3 Top carriages

Electronic movements of carriages in and out of working position (Via remote control)

One speed wave unit



Crash bottom lock unit

Two crash bottom lock units

3 Bottom Transport carriages

3 Top Transport carriages

4 Sets of crash lock hooks

3 Sets of diagonal folding shoes 2 Unit per Set

Bottom chromed support bars

Electronic movements of carriages in and out of working position (Via remote control)

One speed wave unit




4 And 6 Corner

2 Servo Drive Motors 2kw Each

3 Folding Hooks 4 Corners

3 Folding Hooks 6 Corners

6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks)



Final Folding Unit

Folding 2 and 4 crease

Equipped with 2 glue tanks 1 Left 1 Right with 5 M/m disc

Guide rollers Left and right

Adjustable speed control of belts left and right

Movement of carriages electronic (via remote control)

Removable Center top and bottom carriages (For production of small size boxes)





Trombone unit

Double Trombone (Telescopic)

Servo Motor driven 4 KW

Motorized variable speed control of Belt Speed for smooth delivery

Moveable Touch screen Commander Module (For Programming Measurement’s,Substratelength,Distance between substrate carton blank, speed of trombone unit, Batch counter Pneumatic kicker for batch count quantity )



Pressing unit

1 Drive Servo Motor 4.5 KW

Electronic Movement of Press Motorized (Front and Backward position)

Pneumatic pressing (Adjustable via Pneumatic Regulator valves)

Pneumatic Front Stops (Squaring Device)

Machine Pictures

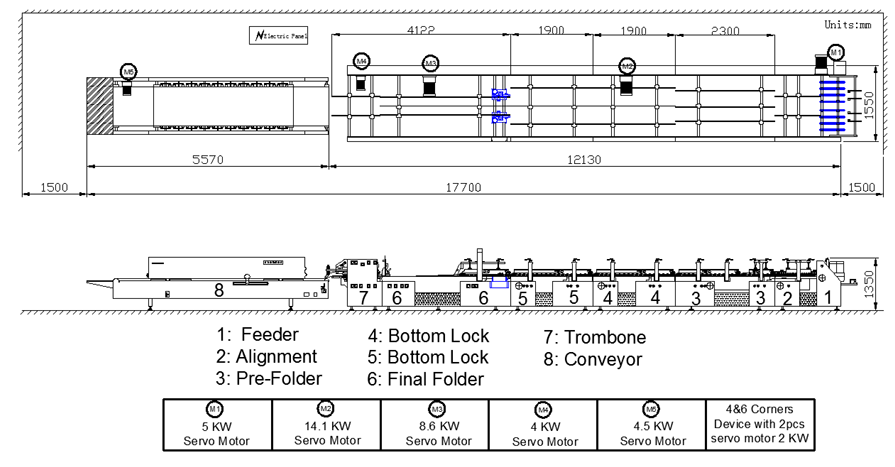

Floor Plan
